Description of Photointerrupters - Slot Type - Transistor Output

Photointerrupters - Slot Type - Transistor Output are slot-type sensors that detect the presence or passage of objects by interrupting a light beam. They typically consist of an LED and a phototransistor, where the presence of an object in the slot blocks the light beam, altering the output state of the phototransistor. These sensors are widely used in position detection, counting, printers, and automation equipment applications.

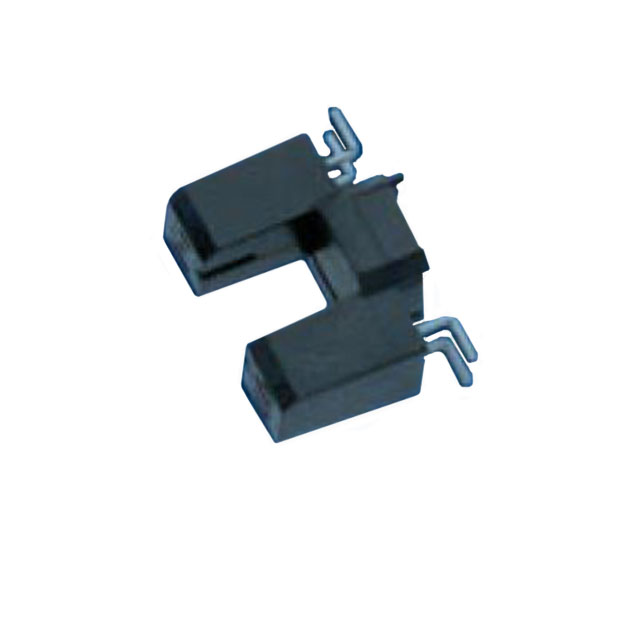

Photointerrupters - Slot Type - Transistor Output

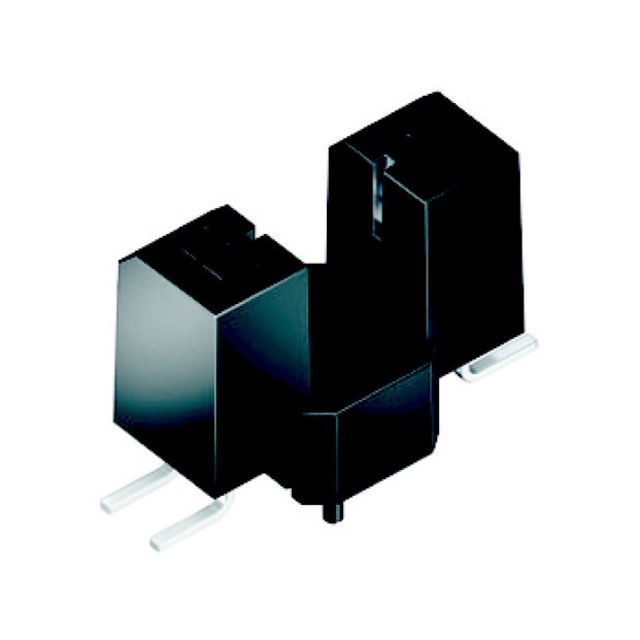

Photointerrupters - Slot Type - Transistor Output

Photointerrupters are optical devices used to detect the presence or absence of an object, commonly found in automation, industrial applications, and consumer electronics. The slot type photointerrupter is a specific design that features a light-emitting diode (LED) and a phototransistor positioned across a slot or gap. When an object interrupts the light beam, the device detects this change and outputs a signal.

Key Components

1. LED (Light Emitting Diode): The LED emits light, usually in the infrared spectrum. When the LED is powered, it creates a continuous light beam across the slot.
2. Phototransistor: Located opposite the LED, the phototransistor detects the light from the LED. When the beam is unobstructed, the phototransistor remains off. When an object interrupts the beam, the phototransistor turns on, allowing current to flow through its collector-emitter path.

Operation

The operation of a slot type photointerrupter is straightforward:

• Uninterrupted State: When there is no object in the slot, the light from the LED reaches the phototransistor, keeping it in the off state.
• Interrupted State: When an object blocks the light beam, the phototransistor turns on, producing a change in output that can be used to trigger other devices or systems.

Features and Advantages

• Simple Design: The slot type photointerrupter has a straightforward design that makes it easy to integrate into various applications.
• Reliability: These devices are robust and can operate in harsh environments, making them suitable for industrial use.
• Fast Response Time: They provide quick detection, allowing for real-time feedback in automated systems.
• Transistor Output: The transistor output provides a convenient way to interface with digital circuits, allowing for easy signal processing.

Applications

Slot type photointerrupters with transistor outputs are used in a wide range of applications, including:

• Position Sensing: Detecting the position of moving parts in machinery and automation systems.
• Counting Systems: Counting items on a conveyor belt or in packaging applications.
• Safety Devices: Implementing safety interlocks in machinery by detecting when access doors are opened.
• Robotics: Providing feedback on the presence or absence of objects in robotic systems.

In summary, slot type photointerrupters with transistor outputs are versatile and reliable components widely used in various applications to detect objects and facilitate automation processes. Their simple design and quick response make them essential tools in modern technology.
