Description of Photointerrupters - Slot Type - Logic Output

Photointerrupters of the slot type with logic output are sensors that detect interruptions in the light beam, providing a logic-level output signal. They are used in various applications such as position sensing, object detection, and counting in automated systems. These sensors offer reliable performance and are suitable for industrial automation, robotics, and consumer electronics where precise detection and control are essential.

Photointerrupters - Slot Type - Logic Output

Photointerrupters - Slot Type - Logic Output

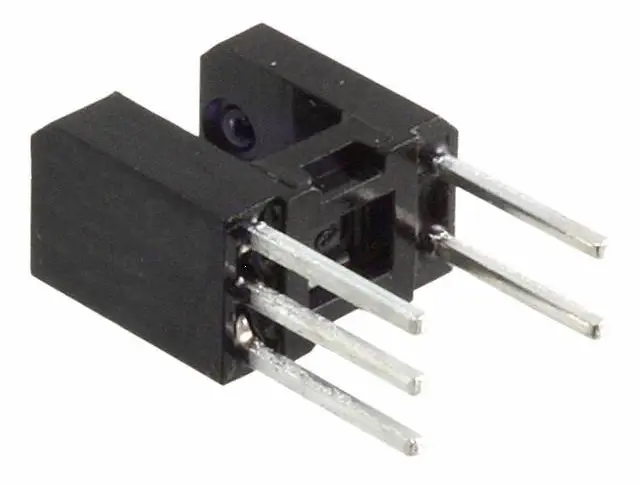

Slot type photointerrupters are optical sensing devices designed to detect the presence or absence of an object across a defined gap or slot. They consist of a light-emitting diode (LED) and a photodetector, typically a phototransistor or photodiode, arranged in such a way that the light beam passes through the slot. When an object interrupts the beam, the device responds by changing its output state.

Key Components

1. LED (Light Emitting Diode): The LED emits light, often in the infrared range, creating a continuous light beam across the slot.
2. Photodetector: Positioned directly across from the LED, the photodetector senses the light. Depending on the design, this could be a phototransistor or a photodiode.
3. Logic Output: The logic output configuration enables the photointerrupter to produce a clear high (logic 1) or low (logic 0) signal based on whether the light beam is interrupted.

Operation

The operation of a slot type photointerrupter with logic output is quite straightforward:

• Uninterrupted State: When there is no object in the slot, the light from the LED reaches the photodetector, which generates a high logic signal (logic 1).
• Interrupted State: When an object interrupts the light beam, the photodetector no longer receives light, resulting in a low logic signal (logic 0). This change can be used to trigger other components in a system.

Features and Advantages

• Direct Compatibility with Digital Circuits: The logic output makes it easy to interface with microcontrollers and digital systems, facilitating integration into electronic designs.
• Fast Response Time: These devices offer quick detection capabilities, making them suitable for real-time applications.
• Robust Design: Slot type photointerrupters are durable and can function effectively in various environmental conditions, including dusty or humid settings.

Applications

Slot type photointerrupters with logic outputs are commonly used in various applications, including:

• Position Detection: Identifying the position of moving parts in machinery and automation systems.
• Counting Mechanisms: Counting objects on conveyor belts or in production lines by detecting interruptions in the light beam.
• Safety Interlocks: Implementing safety features in machinery by detecting when doors or guards are opened or closed.
• Consumer Electronics: Used in devices such as printers and scanners for paper detection and feed mechanisms.

In summary, slot type photointerrupters with logic outputs are essential components in modern automation and control systems. Their ability to provide clear digital signals based on object detection makes them highly valuable in a wide range of applications, enhancing efficiency and reliability in various technologies.
